Graph of the thick film firing process

by jwpustjens

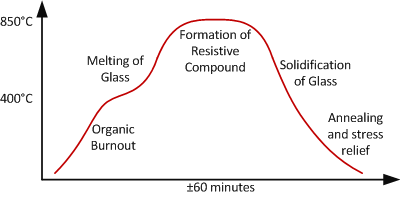

The firing procedure for thick film in a temperature over time curve

The printing process of the thick film paste onto the substrate involves several stages: organic burn-out, melting of glass, formation of resistive compound, solidification of the glass and finally annealing and stress relief. The maximum temperature is around 850 degrees Celsius and the duration of the process is approximately one hour.
