Shunt Resistor Current Measurement

by jwpustjens

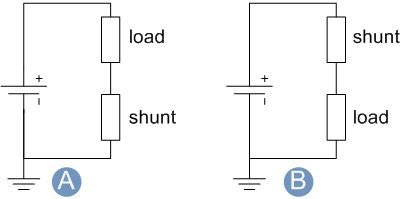

Position of shunt resistor in the circuit for current measurement

A. Often the shunt is placed in the grounded side to eliminate the common mode voltage. However, other disadvantages exist.
B. In this configuration, the common mode voltage could be too high for the ammeter
