Photo resistor


Photo resistor

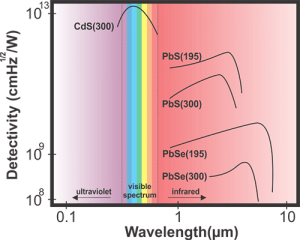

What are photoresistors? Photo resistors, also known as light dependent resistors (LDR), are light sensitive devices most often used to indicate the presence or absence of light, or to measure the light intensity. In the dark, their resistance is very high, sometimes up to 1MΩ, but when the LDR sensor is exposed to light, the resistance drops dramatically, even down to a few ohms, depending on the light intensity. LDRs have a sensitivity that varies with the wavelength of the light applied and are nonlinear devices. They are used in many applications but are sometimes made obsolete by other devices such as photodiodes and phototransistors. Some countries have banned LDRs made of lead or cadmium over environmental safety concerns. Light dependent resistor definition Photo resistors are light sensitive resistors whose resistance decreases as the intensity of light they are exposed to increases. Characteristics Types of photo resistors and working mechanisms Based on the materials used, photo resistors can be divided into two types; intrinsic and extrinsic. Intrinsic photo resistors use undoped materials such as silicon or germanium. Photons that fall on the device excite electrons from the valence band to the conduction band, and the result of this process are more free electrons in the material, which can carry current, and therefore less resistance. Extrinsic photo resistors are made of materials doped with impurities, also called dopants. The dopants create a new energy band above the existing valence band, populated by electrons. These electrons need less energy to make the transition to the conduction band thanks to the smaller energy gap. The result is a device sensitive to different wavelengths of light. Regardless, both types will exhibit a decrease in resistance when illuminated. The higher the light intensity, the larger the resistance drop is. Therefore, the resistance of LDRs is [... read more]
